Clarion Ring Glass Chandelier

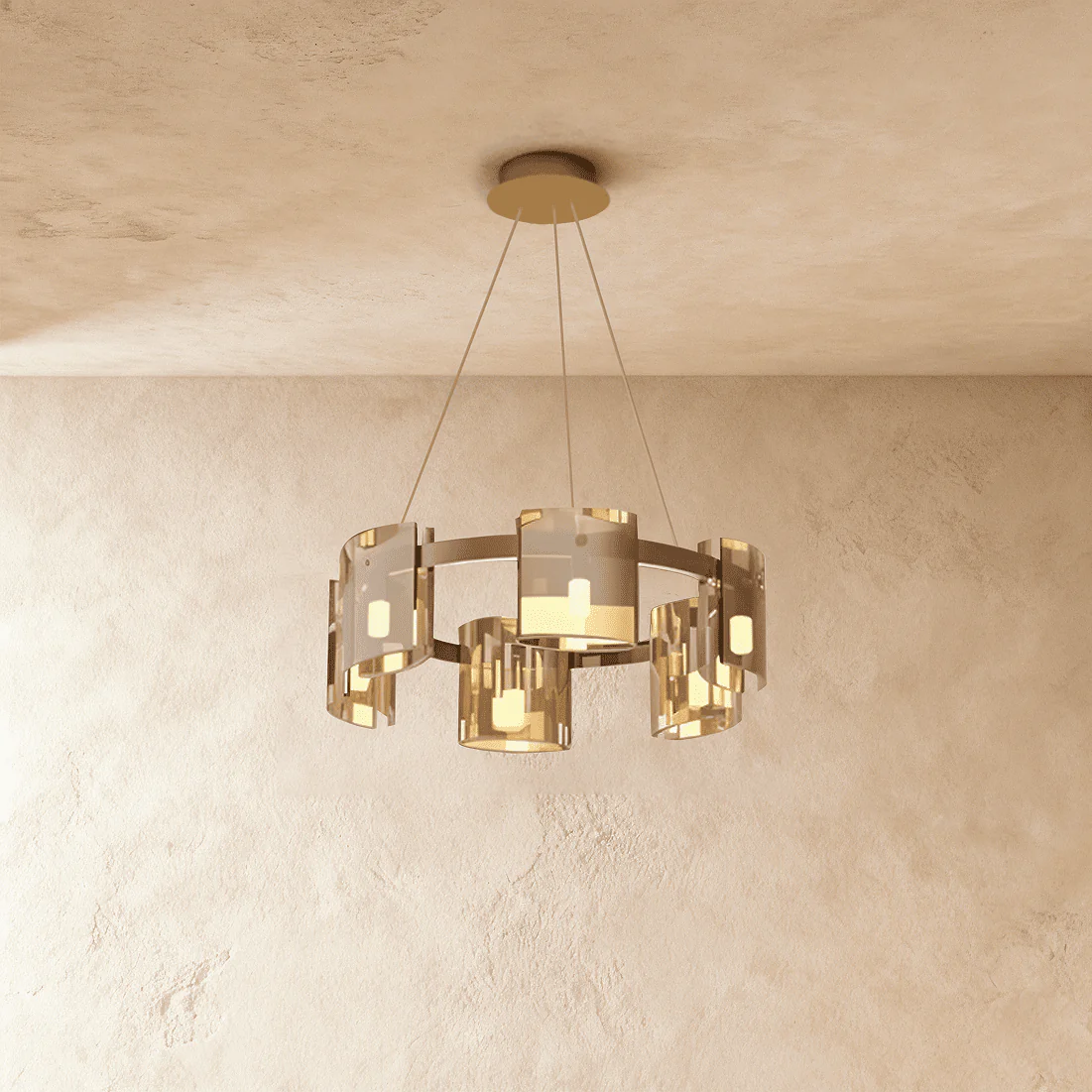

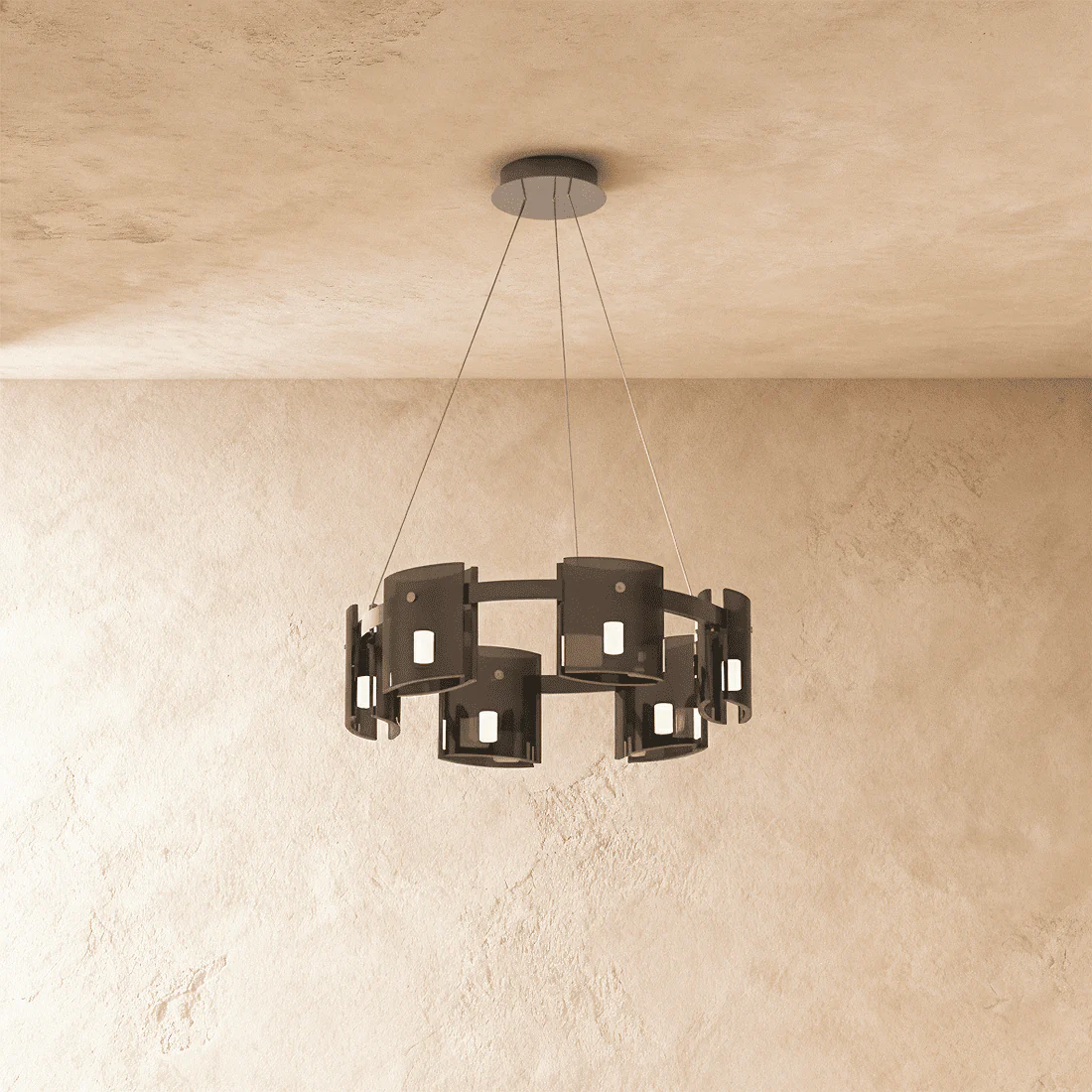

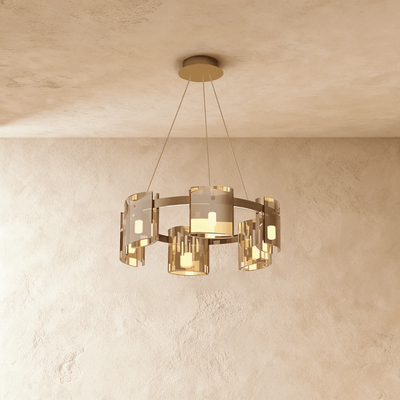

Product Dimensions:1 Tier - Small - 6 Heads:D23.6″(60cm) x H6.6"(17cm)

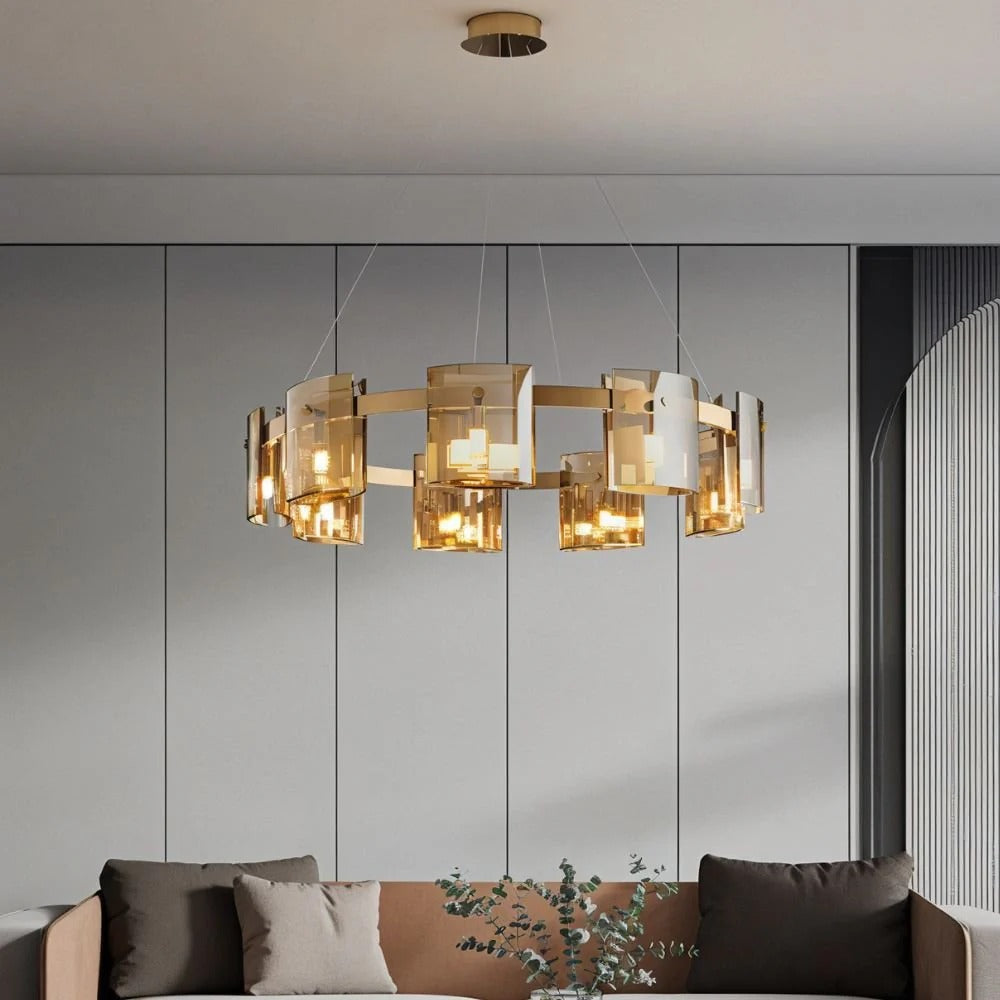

1 Tier - Large - 9 Heads:D31.5″(80cm) x H6.6"(17cm)

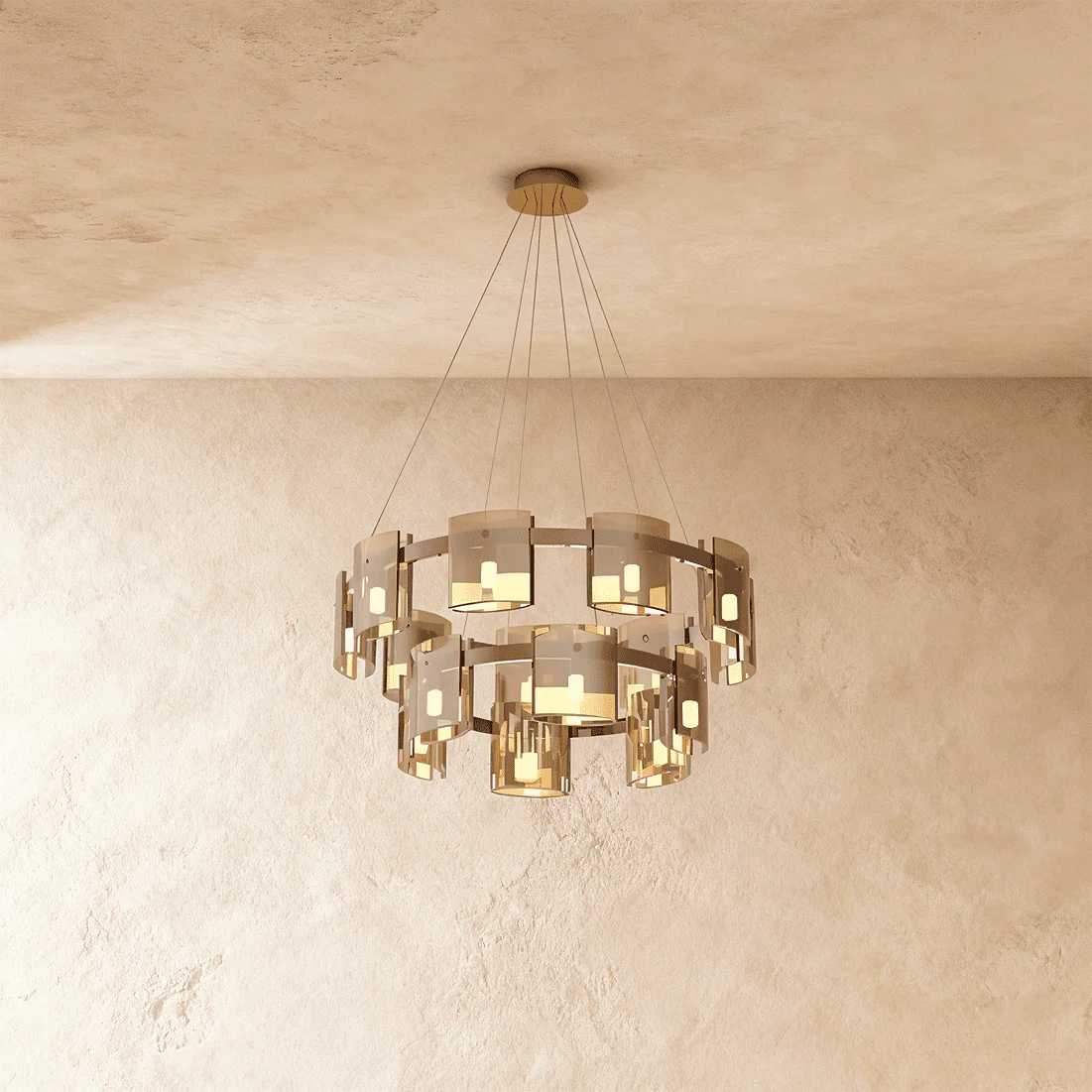

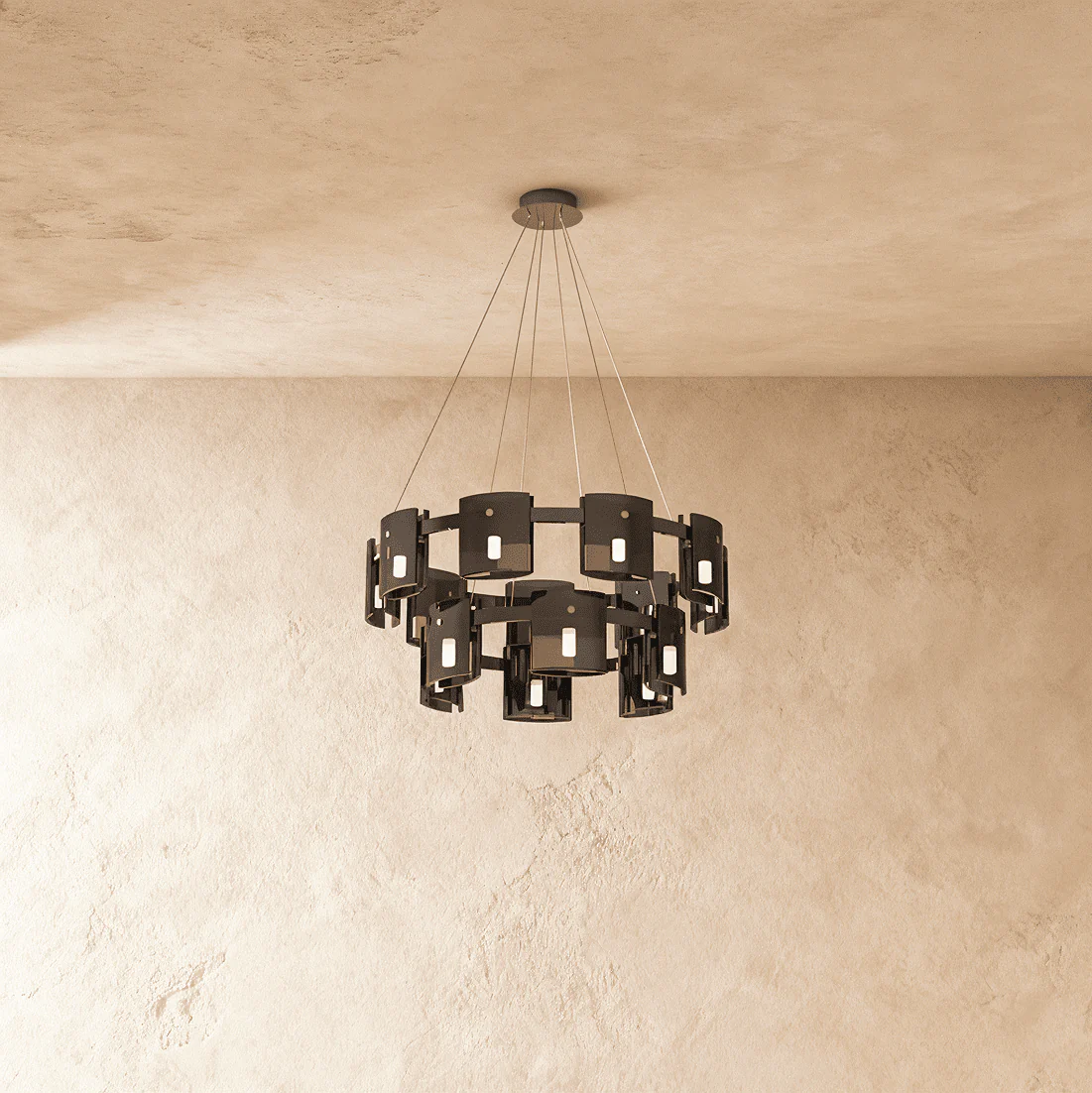

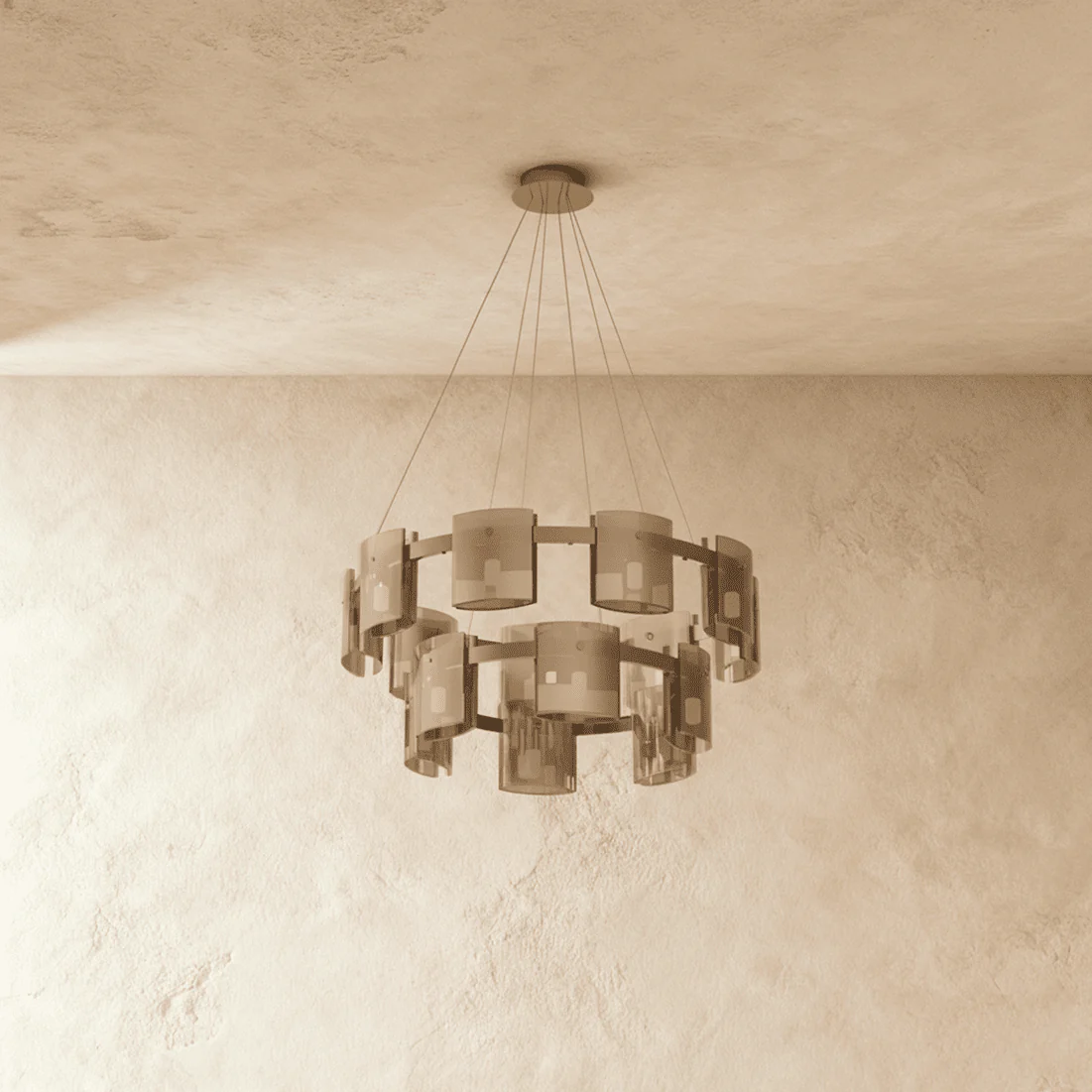

2 Tiers - 15 Heads:D31.5″(80cm) + D23.6″(60cm) x H13.3"(34cm)

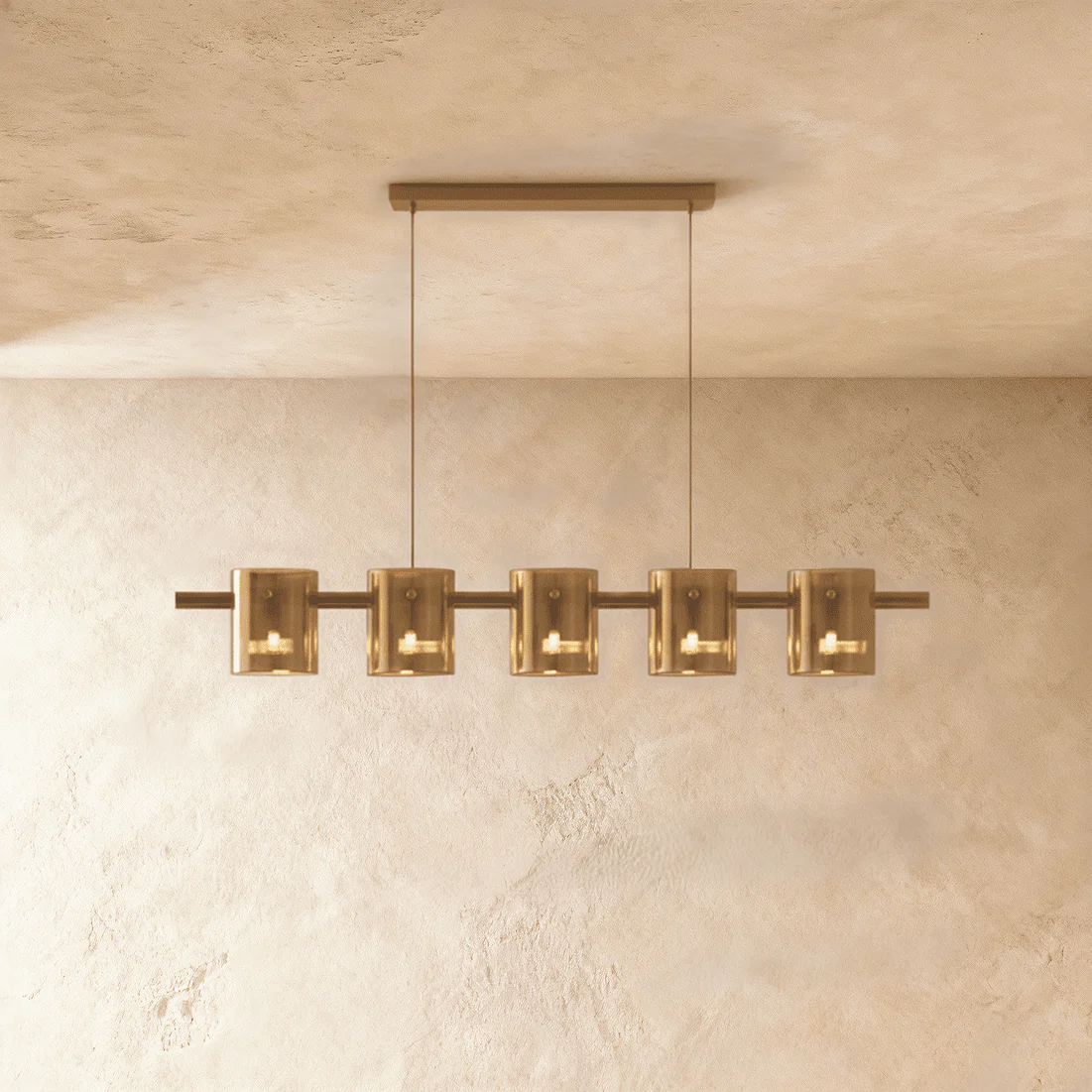

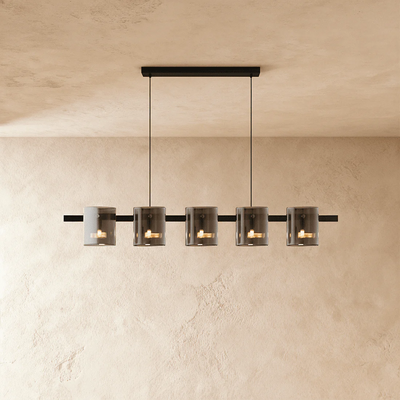

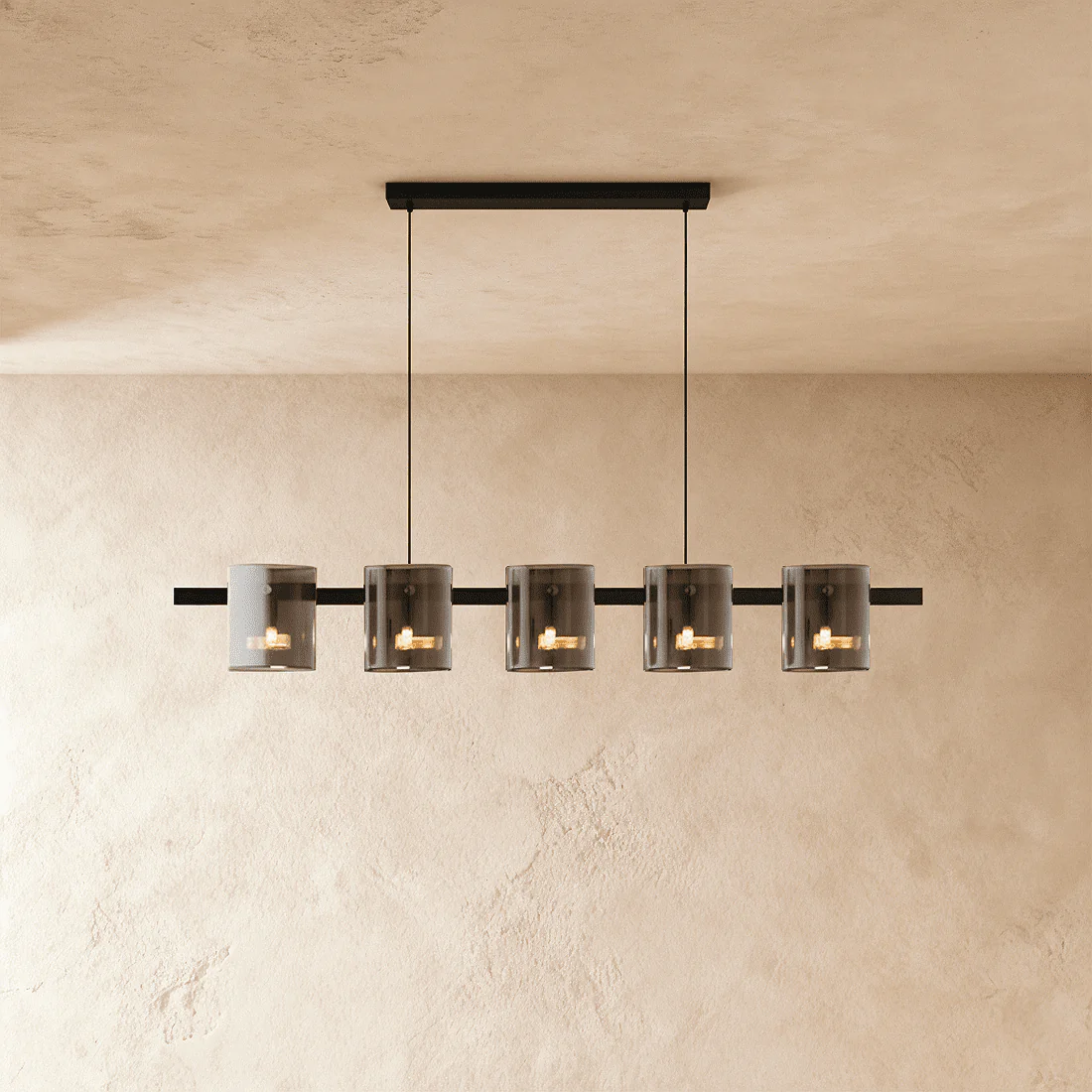

Linear - 5 Heads:L47.2″(120cm) x H6.6"(17cm)

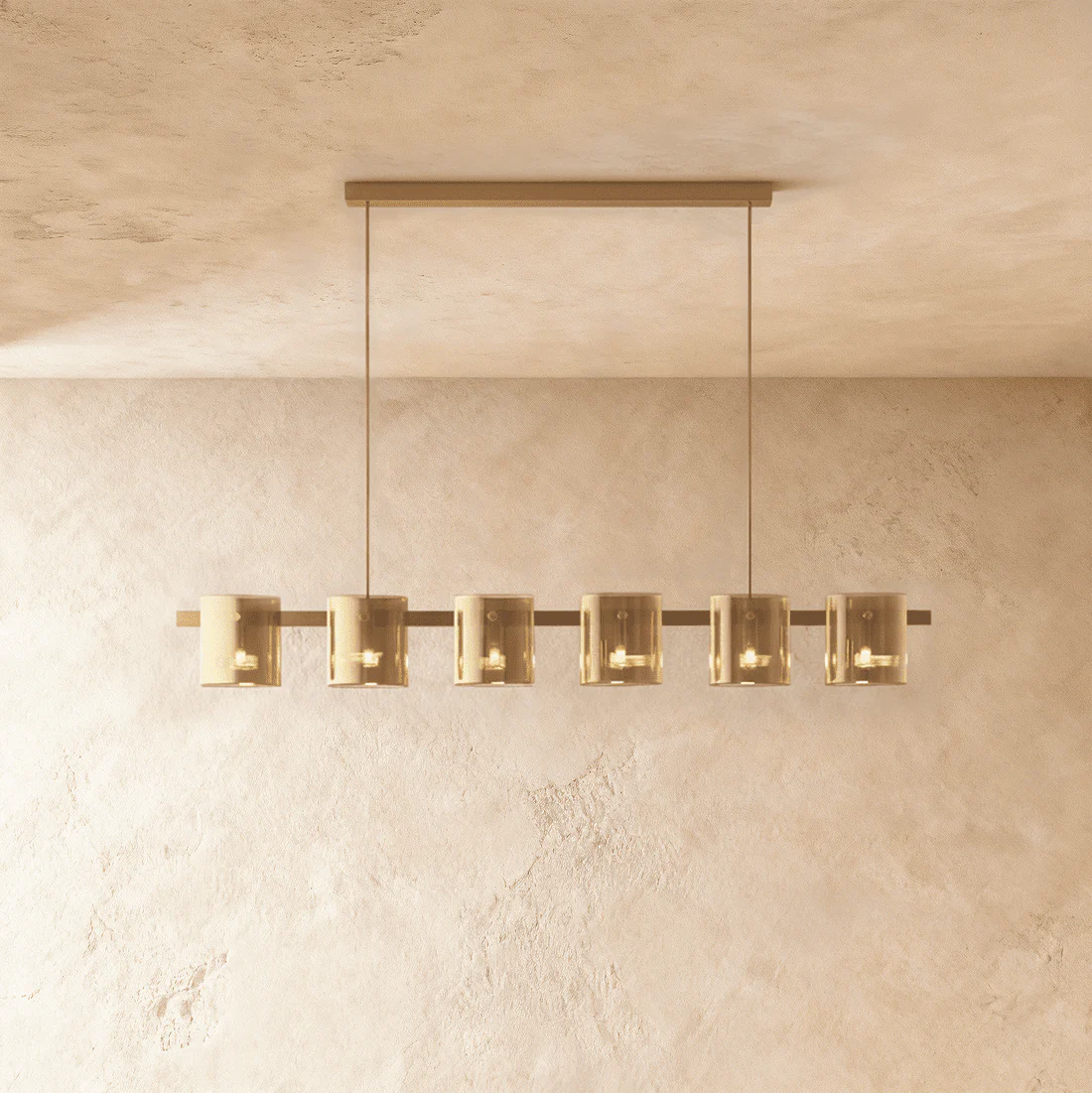

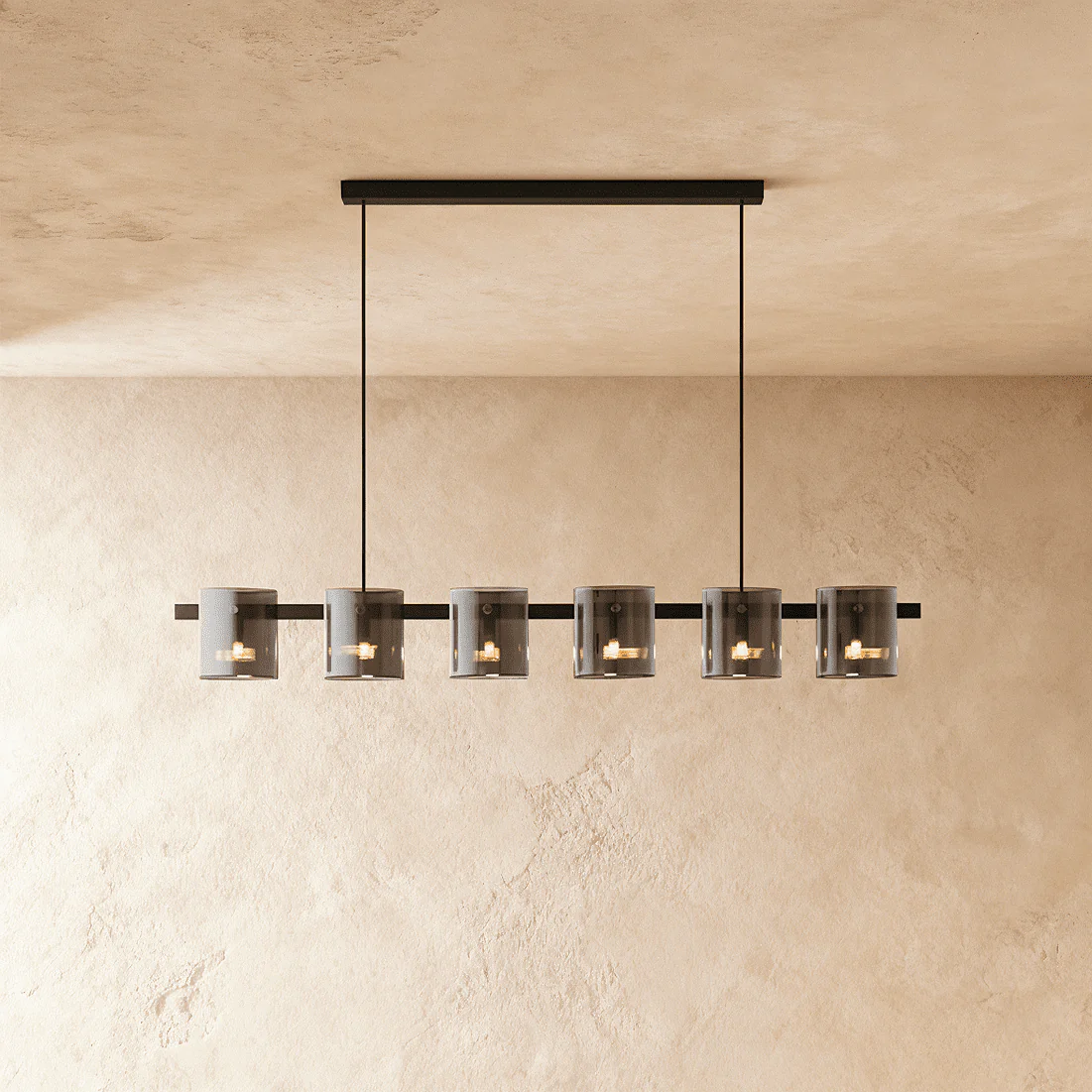

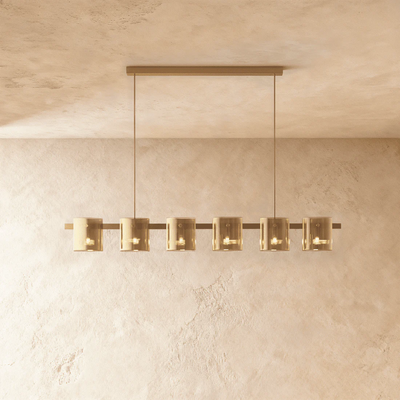

Linear - 6 Heads:L55.1″(140cm) x H6.6"(17cm)
Wattage (Lumens):1 Tier - Small - 6 Heads:30W (3000lm)
1 Tier - Large - 9 Heads:45W (4500lm)
2 Tiers - 15 Heads:75W (7500lm)
Linear - 5 Heads:25W (2500lm)
Linear - 6 Heads:30W (3000lm)

Weight:11lbs (5kg), 13.2lbs (6kg), 15.4lbs (7kg), 17.6lbs (8kg), 22lbs (10kg)
Material:Glass, Copper
Finish:Black, Gold
Light Source:LED Light Bulb (replaceable)
Bulb Included:Yes
Number of Bulbs:Up to 9
Bulb Base:G9
Dimmable:Yes (Optional)
Voltage:90-260VAC
Installation Type:Hardwired
Chain/Cord Length:Up to 3.9ft (1.2 meter)
Adjustable Cord:Yes
Canopy/Backplate Dimensions:D5"(12.7cm) x H1.5"(3.8cm)
Sloped Ceiling Compatible?:Yes
Certifications:UL, CCC, CE, CQC, EMC, FCC, GS, LVD, PSE, ROHS, SAA, and VDE

Details

• Mounting Type: All fixtures in this collection are ceiling-mounted. Designed for secure installation to a standard ceiling junction box.
• Dimming: Fixtures with standard bulb sockets are dimmable. Integrated LED models are non-dimmable. For dimmer compatibility or custom solutions, Contact Us.
• Hanging Height: Default cord length is 47" (1.2m). Need a shorter or longer drop? We’re happy to help — Contact Us.
• Ceiling Type: All models are compatible with flat ceilings, and most can be mounted on sloped ceilings. Check the product specifications to confirm.
• Power Source: These fixtures are hardwired and require connection to your home's electrical supply.
• Dimensions: For exact measurements not listed on the product page, Contact Us.

Tools You May Need

• Screwdriver
• Voltage tester
• Wire stripper
• Wire nuts (included)
• Ladder
• Drill (if installing on a new junction box or non-standard ceiling)

Installation Steps

Step 1: Turn Off Power
Switch off power to the lighting circuit at your home’s breaker panel. Use a voltage tester to confirm that no electricity is flowing to the installation area.

Step 2: Mount the Bracket
Secure the included mounting bracket to your ceiling junction box using the provided screws. Ensure the bracket is tightly fastened and level.

Step 3: Adjust Hanging Height
Before connecting any wiring, set your preferred hanging height by adjusting the cord, chain, or downrod. Lock in the height using the fixture’s canopy adjustment mechanism.

Step 4: Connect the Wiring
Match the fixture’s wires with the wires from your ceiling:

• Black (live/hot) to black
• White (neutral) to white
• Green or bare (ground) to the house ground wire or ground screw
  Secure the connections with wire nuts, and gently tuck the wires into the junction box.

Step 5: Attach the Fixture
Align the canopy or decorative plate with the mounting bracket. Fasten using the screws or caps provided, ensuring the fixture sits flush and secure against the ceiling.

Step 6: Install Light Bulbs
Insert bulbs of the correct type and wattage, as specified for your fixture. If using dimmable bulbs, ensure compatibility with your wall dimmer switch.

Step 7: Restore Power and Test
Turn power back on at the breaker panel. Switch on your light fixture to ensure proper operation.

Important Tips

• Always follow your local electrical codes and regulations.
• For high ceilings, angled mounts, or complex installations, consult a licensed electrician.
• Clean the fixture gently with a soft cloth to maintain its finish and brilliance.
• Avoid over tightening connections, especially on decorative components.
